Meet the PDC Valve, DFT’s Unique Check Valve
Industry professionals responsible for proper fluid and gas flow are well aware of the importance of check valves. Since many check valves operate automatically and are not under constant human control, choosing the right type of valve is critical.
Every application demands a unique valve; this is particularly true when referring to the discharge side of reciprocating air or gas compressors. Reciprocating compressors, also known as piston compressors, are used in a variety of industrial applications, including:
- Oil refineries
- Gas pipelines
- Chemical and natural gas processing plants
- Refrigeration plants
- Building maintenance
- Power generation
- Primary metals
- Pulp & paper
Reciprocating compressors produce high levels of pressure in order to move gases, so any check valve utilized in this process must be extremely durable and reliable.
At DFT, our team designs, manufactures, and distributes an assortment of check valves to suit even the harshest applications. In order to handle the demands of discharging reciprocating compressors, we have created the unique DFT® Model PDC® Silent Check Valve.

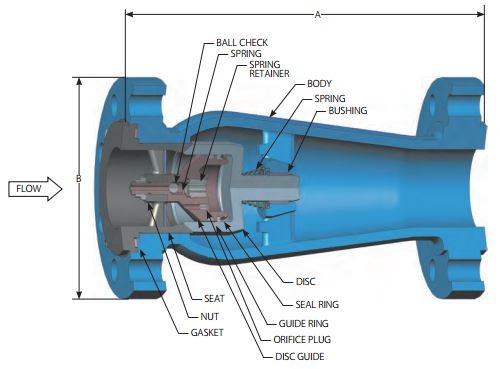

The PDC® valve is a nozzle-style, spring-loaded check valve that allows gases to flow in only one direction. The PDC® valve offers users a variety of benefits; perhaps its most significant feature is its unique pulse damping chamber. The valve’s pulse damping chamber helps maintain the disc in the open position during momentary reductions in flow, which are directly associated with each cycle of a reciprocating compressor. Pulse damping will also protect against costly premature seat wear.
No matter your company’s needs, DFT offers a PDC® Silent Check Valve to fit any application. Our selection of 59 different PDC® Silent Check Valves includes:
- Different ASME classes (150 RF, 300 RF, 600 RF, 900 RF, 1500 RF)
- Various sizes (2”-DN 50; 3”-DN 80; 4”-DN 100; 6”-DN 150; 8”-DN 200; 10”-DN 250; 12”-DN 300)
- Dimension A (9.5-44.5”/ 241-1130mm)*
- Dimension B (6”-26.5”/152mm-673mm)*
- Cracking Pressures of 0.35 psig/0.024 bar-0.82 psig/0.057 bar
- A216 Grade WCB, A352 LCC, A351 CF8M body materials
*Larger sizes available via factory consultation.
The PDC Silent Check Valve meets several industry standards, including ASME B16.10 (for face-to-face dimensions).
If you need to rely on reciprocating compressors, then the DFT® Model PDC® Silent Check Valve might be the ideal choice for you. To learn more about this one-of-a-kind product, visit our resource library or contact a DFT representative today.
Your datasheet does not specifically say that the valve is tested to ASME B16.34. Can you please confirm?
Yes the PDC meets ASME B16.34 and you can download DFT’s codes and standards sheet as well for reference on the PDC and other DFT Check Valves.
Thank you for your question!
