Petroleum Production & Refining Success Story II

Facility: Large Oil Rig Operation

Application Problem: Vertical Treater Dump Valve High Flow and Foam Backup

Solution: DFT® Model FBC® Check Valve

Success Since: 2009

Challenge: An Oil Operation was experiencing problems in their process areas within the treater shack and larger oil rig operations.

Three pumps over orange sky
There was a foaming problem occurring when the oil, gas and salt water would come into the treater at a high velocity. It came in so fast, that it made foam grow in the treater. The foam went down the gas line creating problems in the system.

Solution: The DFT® model FBC® Compact Insert Check Valve was the ideal solution. It was used as a restrictor to slow the flow and keep the foaming to a minimum.

The FBC was installed on the down-stream side of the Vertical dump valve, located on the salt water leg coming off the vertical treater (pictured at right). The check valve was used to slow the flow and cure the foaming problem occurring when the oil, gas and salt water flowed into the treater at a high velocity.

This small footprint check valve fit between the Victaulic pipe couplings, eliminating the heavy weight of the current swing checks used on manual hose applications. Upon installation, it was discovered they cured a 2nd problem.

They eliminated the shock problem which was causing the 3” flanged dump valve lever to bounce due to all the gas and liquid pouring in.

The FBC Check Valve was a very inexpensive solution.

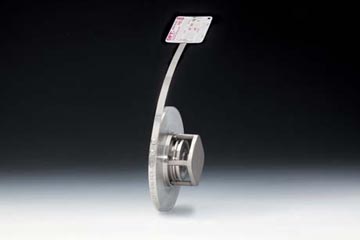

DFT® Model FBC® Compact Insert Check Valve Features:

  • 1” to 4” line size
  • ASME class 150 to 2500
  • Meets ASME B16.34-2013 & MSS SP-126
  • Use in Schedule 40 pipe, consult factory for Schedule 80
  • Stainless steel construction
  • Edge-guided disc
  • Spring assisted silent closing, non-slam
  • Tight shutoff – lapped disc & seat
  • Horizontal or vertical installation
  • Extended tag for easy identification of the installed valve
  • Easy maintenance
  • Versatile
  • Protected spring
